Plenty of filmmakers are looking for ‘organic’ forms to represent alien worlds or magical moments in their movies. So it’s perhaps unsurprising that they would seek to embrace fractals. After all, fractals tend to look like naturally occurring and infinitely repeatable objects, yet can often be simulated with mathematics.

And so it is that several recent 3D movies have adopted fractals – especially three-dimensional ones – to help tell their stories. And they’ve seen use in immersive projects too, where fractal simulations can help realise complex forms for users to explore.

The team at 3D World recently asked the artists at Weta Digital – who were tasked with making complex fractals for Guardians of the Galaxy Vol. 2 – how they went about tackling them.

Fractals of the Galaxy

Put simply, fractals are complex, which is exactly why Weta Digital looked to them as inspiration for the Planet Ego sequences in Guardians of the Galaxy Vol. 2. The studio carried out some early tests embedding implicit functions into its proprietary Manuka path-trace renderer via plugins, with promising results. It matched the client concept art – which specifically featured 3D Apollonian gasket-like shapes – but soon realised that relying on purely mathematical functions could be limiting.

“A fractal is amazing in the sense that it’s just a tiny piece of simple code, but very small changes to the inputs of fractals tend to result in unpredictable, large-scale changes in the output,” outlines Weta Digital visual effects supervisor Kevin Smith. “They’re very chaotic. This was problematic for us as I couldn’t sit in a review with a client and ask them to give notes on a piece of code, much less one that’s completely unpredictable. We knew that whatever methodology we chose needed to be art directable.”

Fractal pieces in Manuka renderer

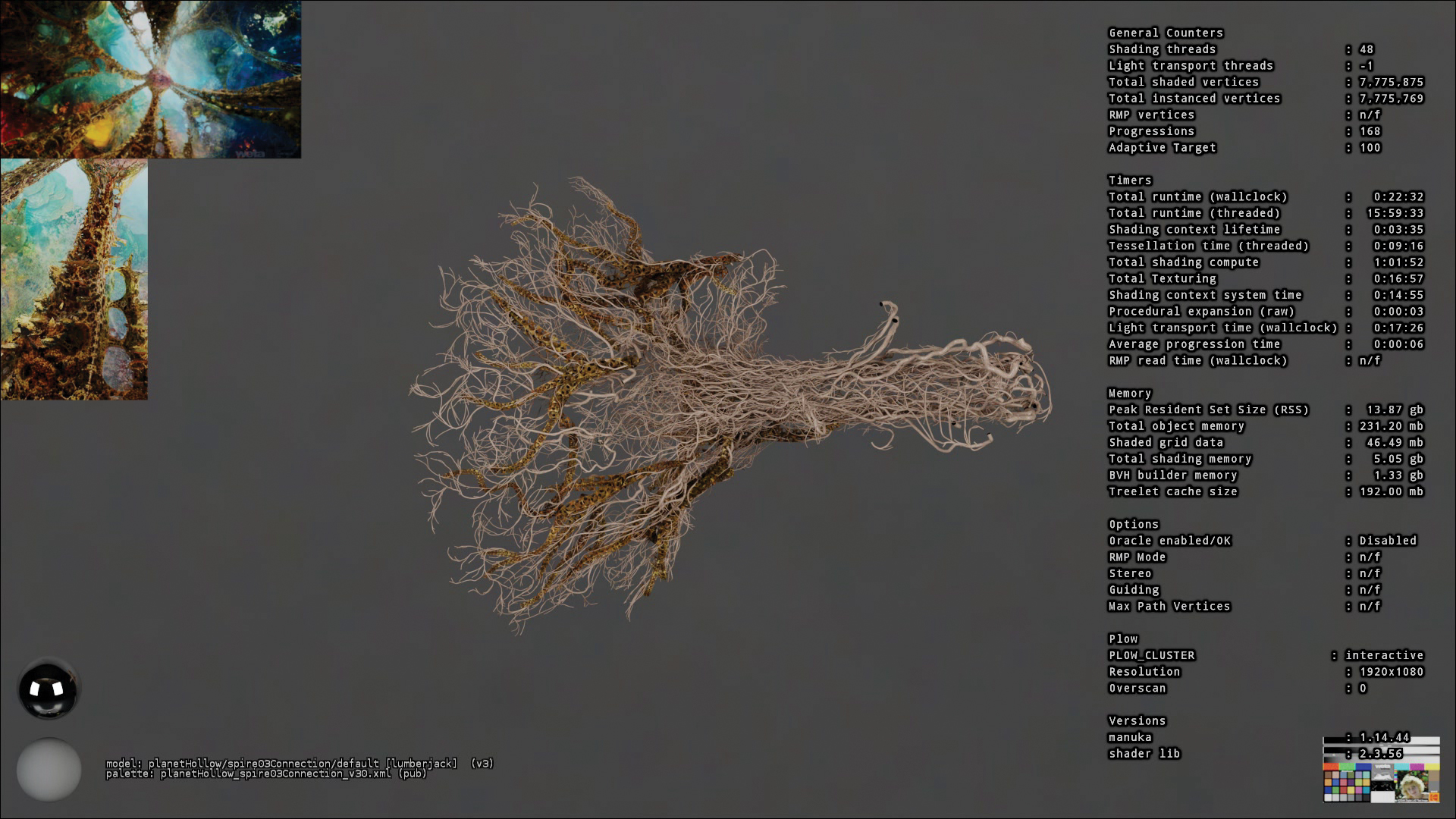

Initial development for the fractal pieces went through Weta digital’s proprietary Manuka renderer

So Weta Digital considered modelling by hand, but again abandoned this approach due to the infinite detail required (“Also, the models supervisor yelled at me when I brought it up,” says Smith). That left the studio with new requirements: defining an arbitrary shape that was art directable but could still match those gasket shapes, and achieving a digital environment that felt like it had infinite practical detail.

The R&D team devised a method that let artists use curves to define an axis and a profile in Maya, and then code that would use a custom sphere-packing algorithm to boolean out spheres from the first shape, to give the appearance of an Apollonian fractal in a user-controlled volume.

“For the detail, instead of trying to add infinite fractal minutia, we used an in-house piece of software called Genesis to essentially spray-paint little instances of fractal geometry all over the resulting shapes produced by the first tool," explains Smith.

"The layout department came up with Genesis brush presets that used combinations of the tiny instances with different scales to essentially make pseudo-fractals. This let us add a lot of detail without incurring an infinite cost. It also helped us age the main sections of the environment, since the Planet Ego in the film was very old.”

Planet ego for Guardians of the Galaxy Vol. 2

Weta digital needed to match specific fractal-looking client concept art for the interior of Planet ego for Guardians of the Galaxy Vol. 2

Then, a stumbling block. The Maya plugin could not quite achieve all the shapes in the concept art. Weta Digital needed a way to generate some of the more esoteric forms from the art that had originally come from Mandelbulb software, but attempts thus far had required prohibitive amounts of memory without the required resolution. The solution, devised by senior modeller Pascal Raimbault, was to generate a 4K turntable of the relevant areas in the Mandelbulb software – instead of geometry – and then feed those renders to Weta Digital’s photogrammetry software.

“It totally worked,” exclaims Smith. “It produced sharper, cleaner, higher-resolution images than we were getting with voxelisation, and allowed us to build a library of shapes we could use to dress in detail that was not just close to the concept but exactly matched it.”

“Visual effects for me has always been about the combination of art and science,” adds Smith, “and it was great to be able to take a purely mathematical concept
like fractals and not only make something new and different, but to use it to help drive the narrative of an awesome movie like Guardians of the Galaxy Vol. 2.”

This article originally appeared in 3D World issue 237; subscribe here
