How to sculpt a character in VR

3D robot

Vertex speaker Glen Southern walks through how to use Oculus Rift to sculpt a character in VR.

You may be forgiven for thinking that the Oculus Rift VR headset was created solely for use as a gaming device. That is no longer the case, as there are now lots of creation tools springing up, including VR sculpting and painting apps.

This project will show you how virtual reality can be used in a character concept pipeline. We will explain how to sculpt in VR and how to paint a character model, in this case a robot from a mining colony. We will be using a few concept sketches and paintings that are imported as reference planes.

The final model and scene is 'photographed' in VR with a number of different lighting scenarios. These are then taken into Photoshop for compositing into a final render.

The software we will be using is Oculus Medium, which is an immersive virtual reality experience that lets you sculpt, model, paint and create objects in a VR environment. The software enables you to create expressive works of art, whether you're a total beginner, an aspiring creative or a professional artist. Using Oculus' Touch controllers enables the user to employ intuitive hand gestures and movement for a natural, tactile experience. The final sculpt will be a character that can be posed and exported with painted colour detail, for use in another app or for 3D printing.

01. Set up Oculus Rift

VR hands holding sculpting tools

Take a while to get your VR legs before jumping in

The video to accompany this tutorial (which you can download here) is recorded in VR and the experience that you will see on screen is not representative of the full experience. Once you have your Oculus Rift and sensors all set up it would be beneficial to spend some time understanding how to hold and use the controllers. Open up Oculus Medium. The first video starts as we enter the Oculus Medium scene.

02. Import reference images

Robot reference images

Find some robot concept art to use as reference

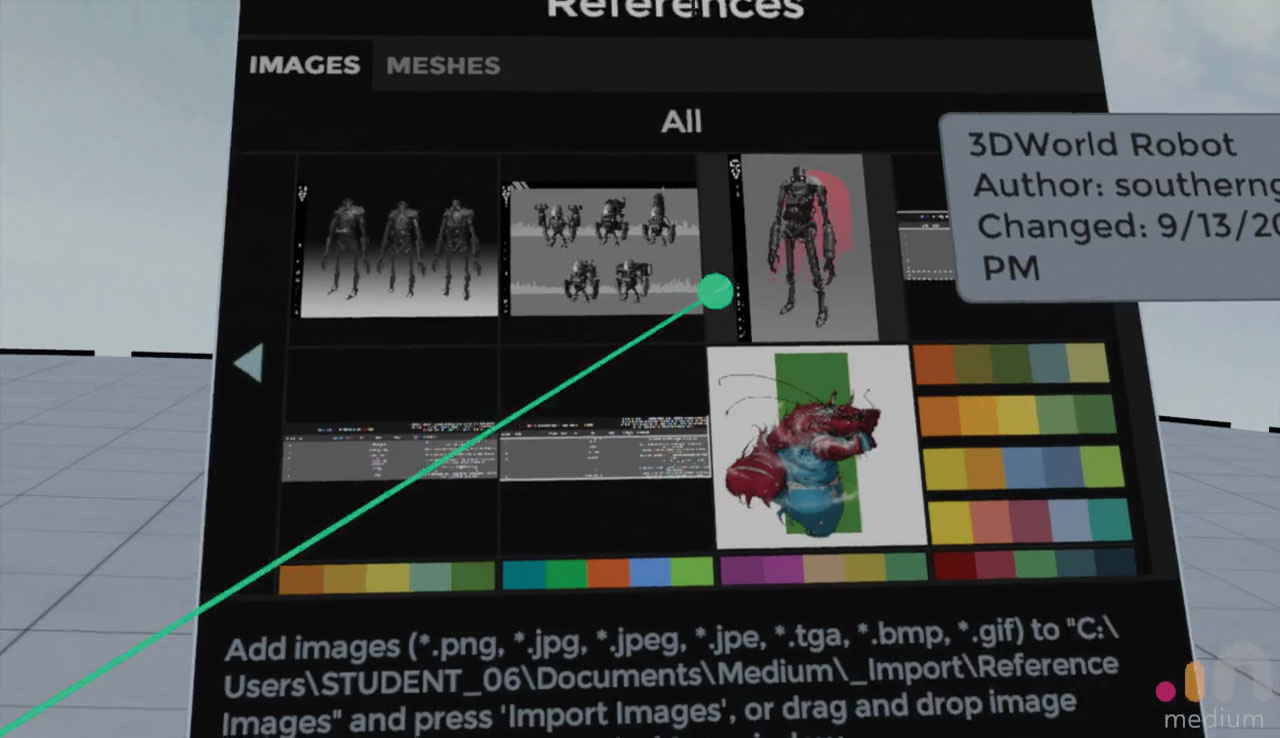

On your computer, look for the default Medium folder and look for a folder called _Import. In there you will find a folder for images and a folder for meshes. For this tutorial we bring in some robot character concept art to use as a guide in the scene. Pull back on the Support hand thumbstick and click the reference button at the bottom of the panel, which resembles a book. This will bring up the References panel. Click Import to add any images that have been saved to the _Import folder. They are now available to use as reference.

03. Add the reference imagery to the scene

VR hands working on a robot image

Select 'Move with sculpt' for your reference images

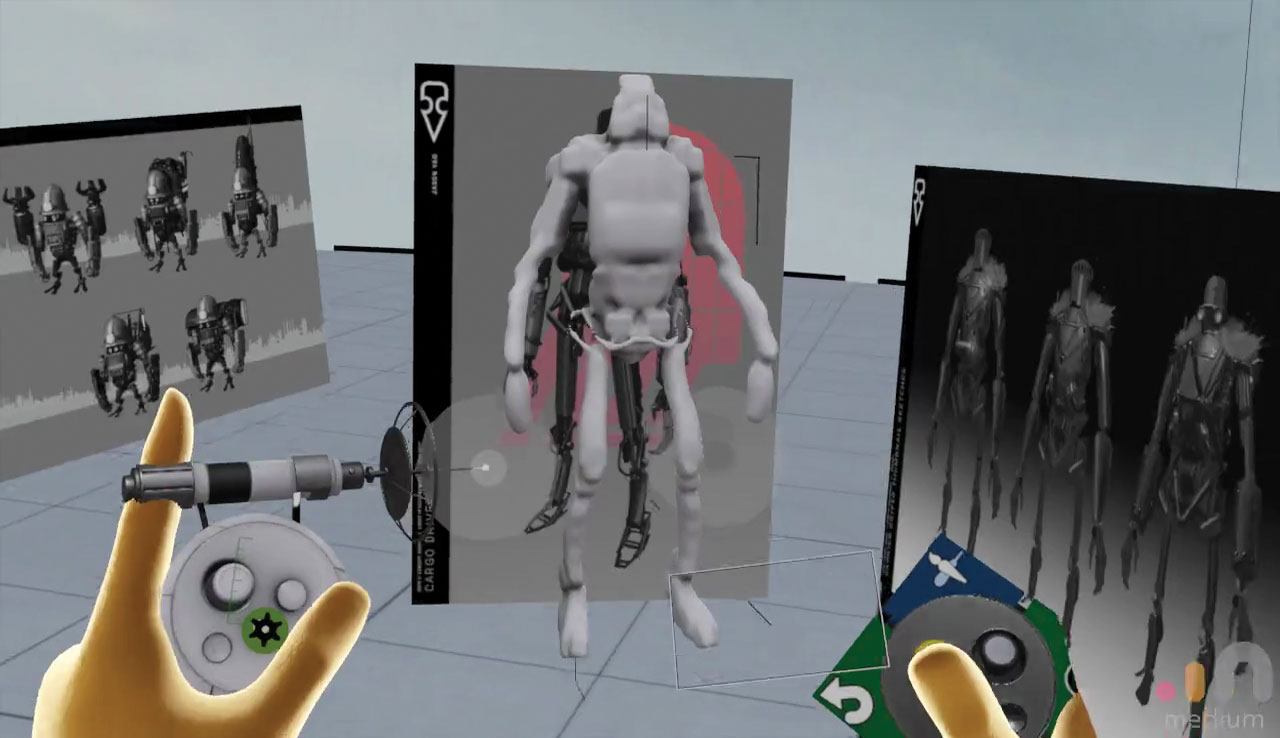

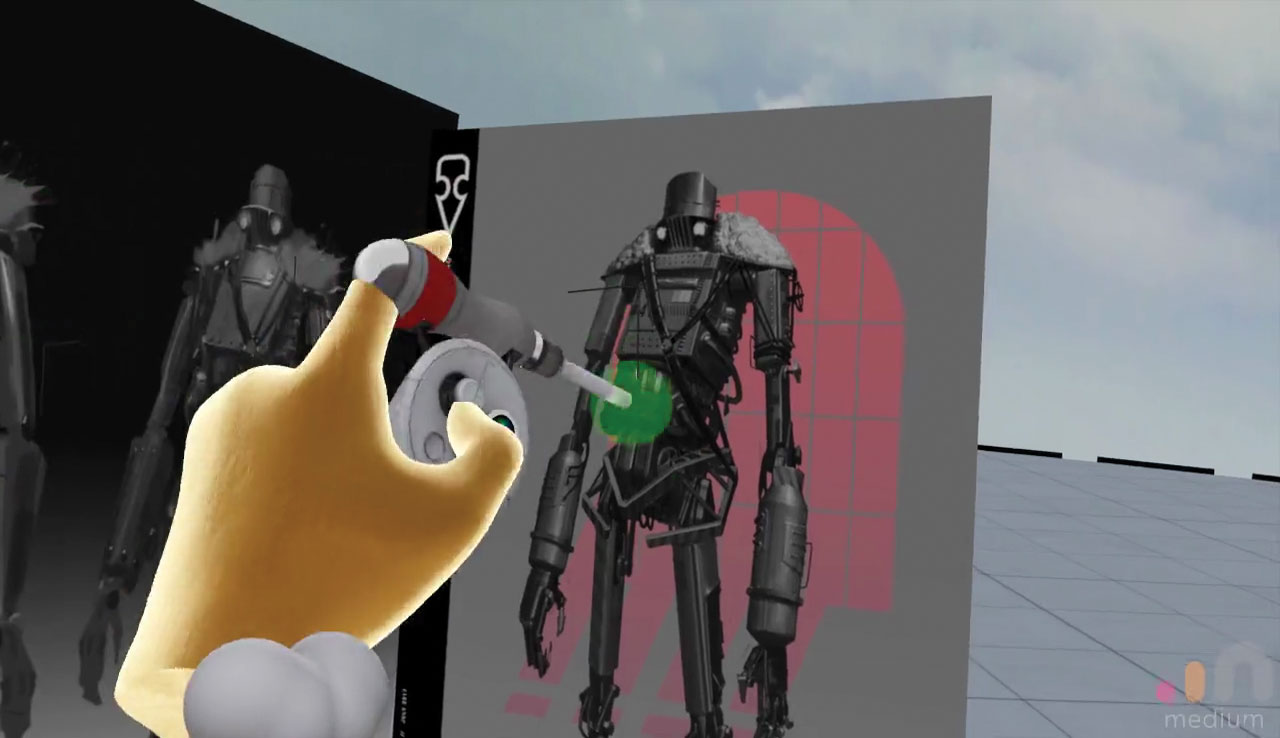

After selecting the images you imported, they should appear in the VR scene. Pull back on the Support hand thumbstick to exit the reference panel. To move an image, click on one and it will display a green outline to show it is selected. Pressing the green button on your Tool hand will bring up options for the reference image. Now hit the green gear button and select 'Move with sculpt'. Move the reference image to a position that works for you and enables you to model in front of it, and repeat this for each of the reference images.

You can also delete images from the scene using this options panel. If you don't select 'Move with sculpt' the image will lock to a position in the scene. This can be useful for adding signs and graphics to your VR scene.

04. Block out the base of the robot

View through VR headset of hands building a 3D robot

Enable the mirror function to save time on your sculpt

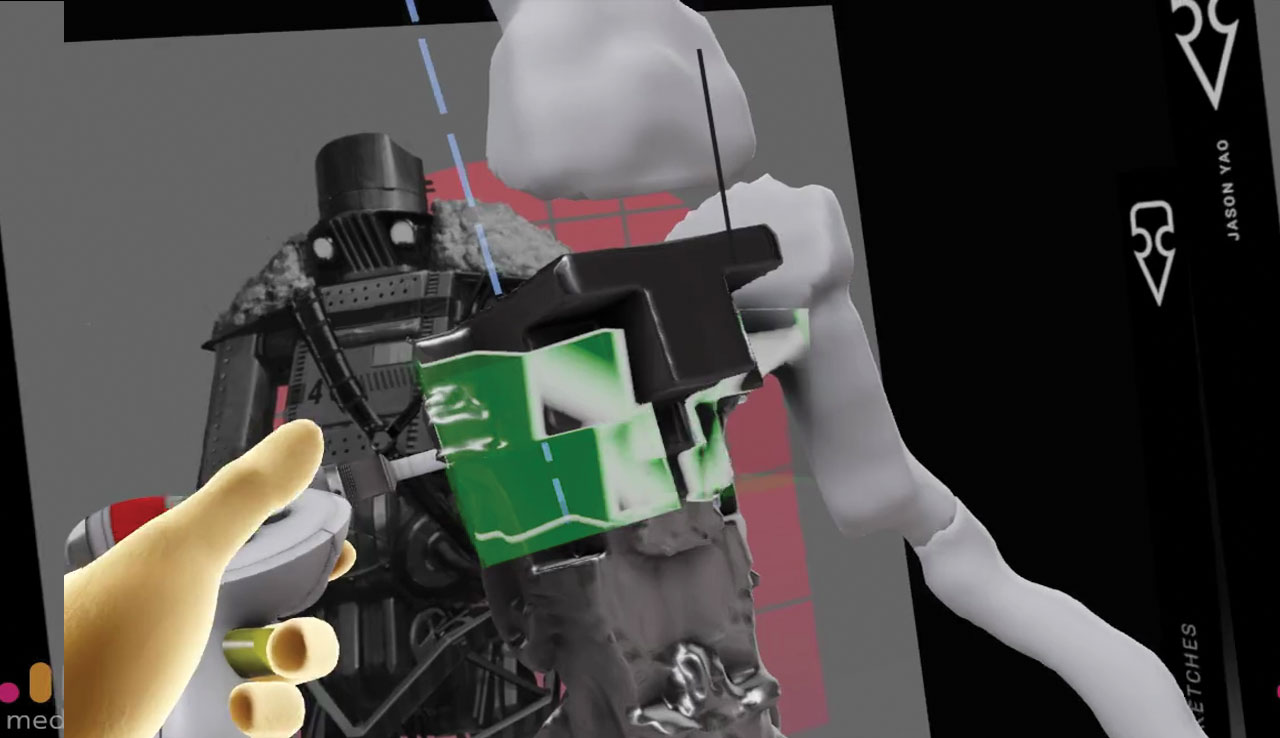

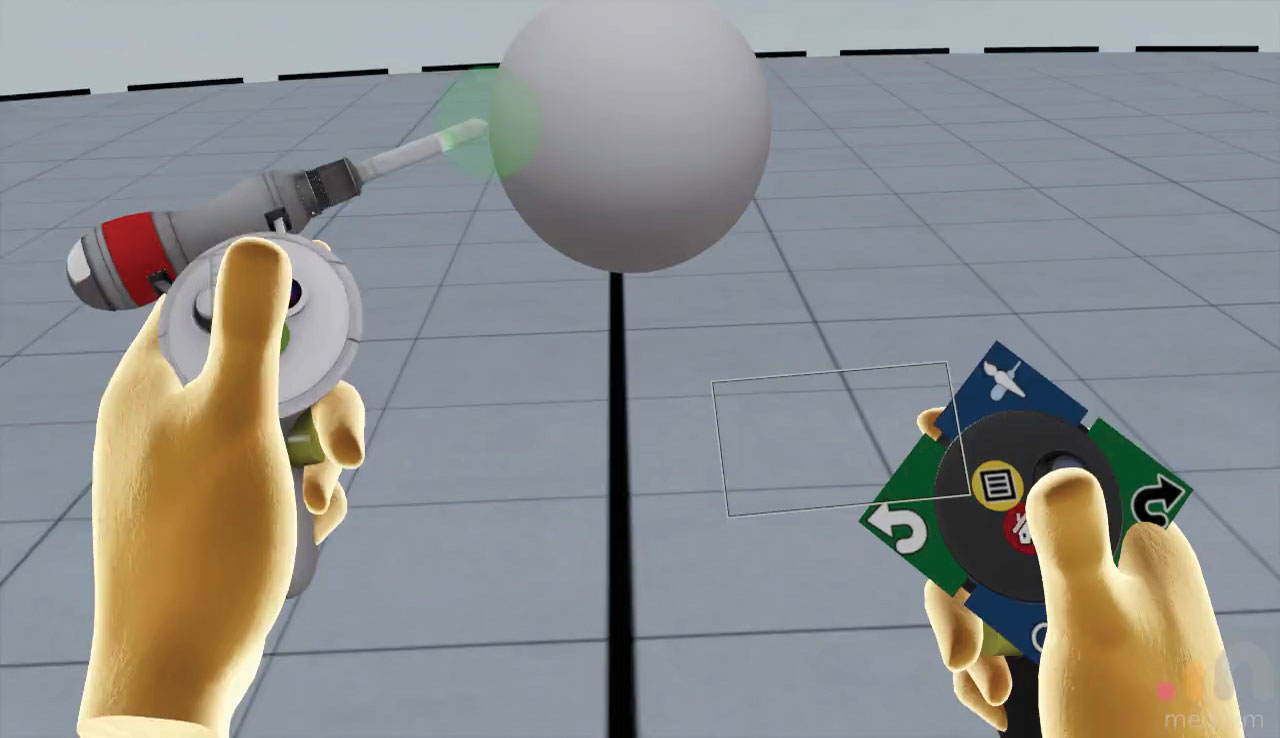

We will do a very rough layout model. Push forward on your Support hand thumbstick to bring up the tool radial menu and make sure you have the Clay tool selected. Pressing the trigger on the Tool hand adds clay to the scene. As the robot is symmetrical, we need to enable the mirror function by clicking the yellow control panel button on the Support hand and selecting Mirror.

05. Change default stamps

Changing the Clay tool stamps settings

You can customise the brush shape to suit your needs

We started sculpting with the Clay tool and with a default sphere shape. Although this is the most basic sculpting tool in Medium, it can be customised with a variety of different brush shapes.

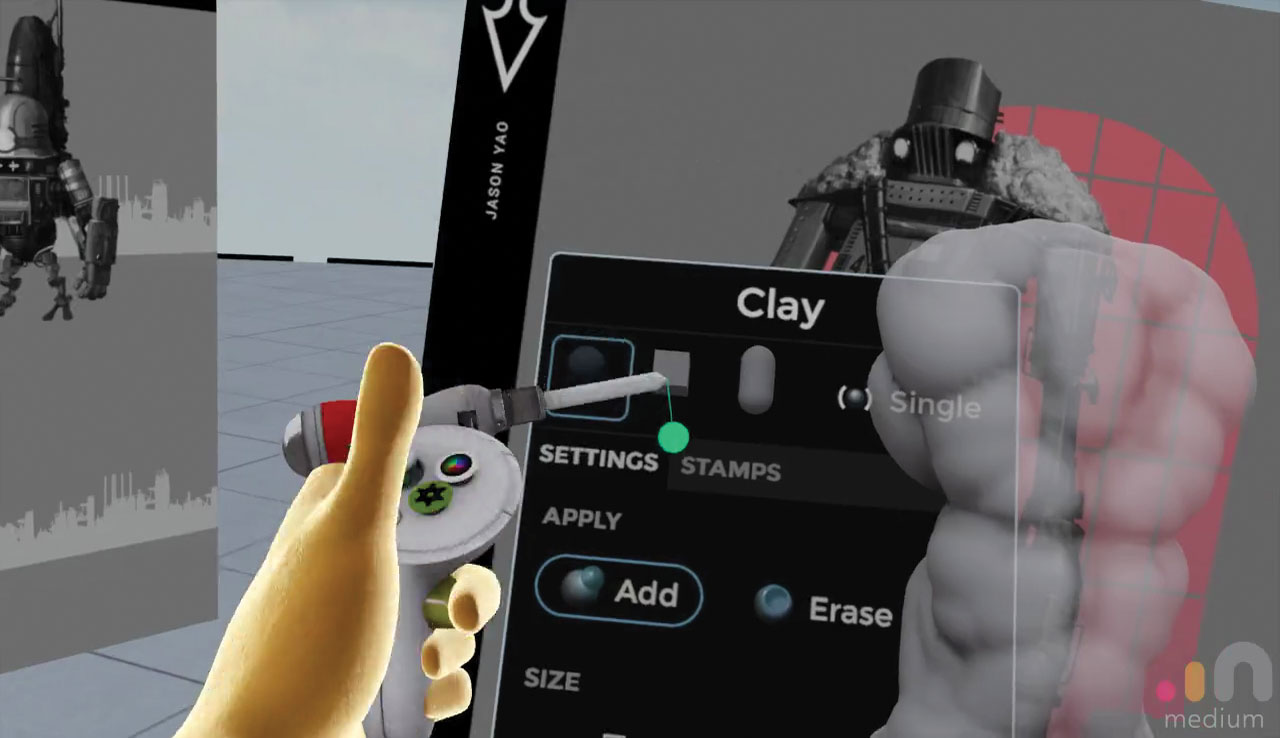

To change brush shape, press the green gear button on the Tool hand controller and at the top of the panel you will find the default brush shapes. Select one to make it the active shape at the end of your sculpting tool. Medium comes with a large catalogue of stamps, which are located in the menu below the default brush shapes.

06. Split the model into parts

VR hands taking a cutting tool to a model

Split your model into layers using the Cut tool

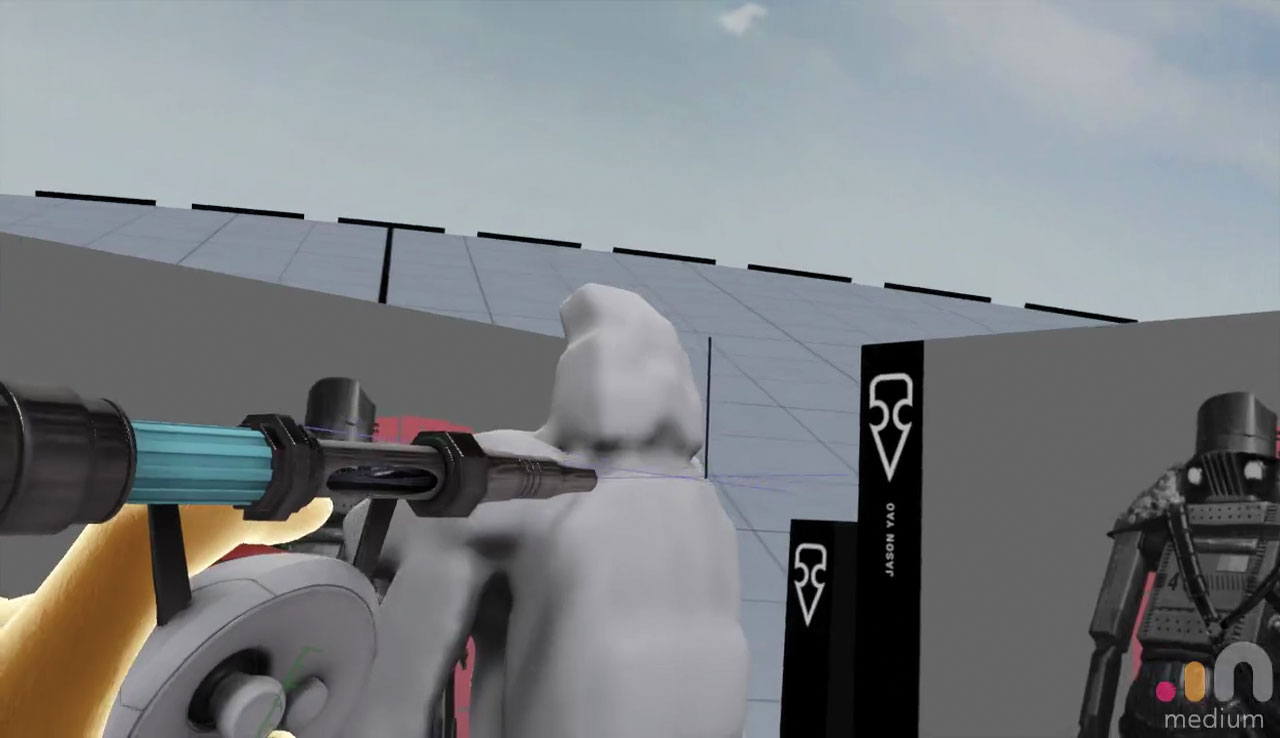

Use the Cut tool and slice up the model, which automatically creates a new layer for each part. Push forward with the Support hand thumbstick and select the Cut tool on the radial menu. Remove the head first by moving the line through the neck while pressing the Tool hand trigger down. If you have done it correctly the head will be in a separate layer.

07. Navigate layers

Layers menu with names highlighted

Make sure you know which layer is which

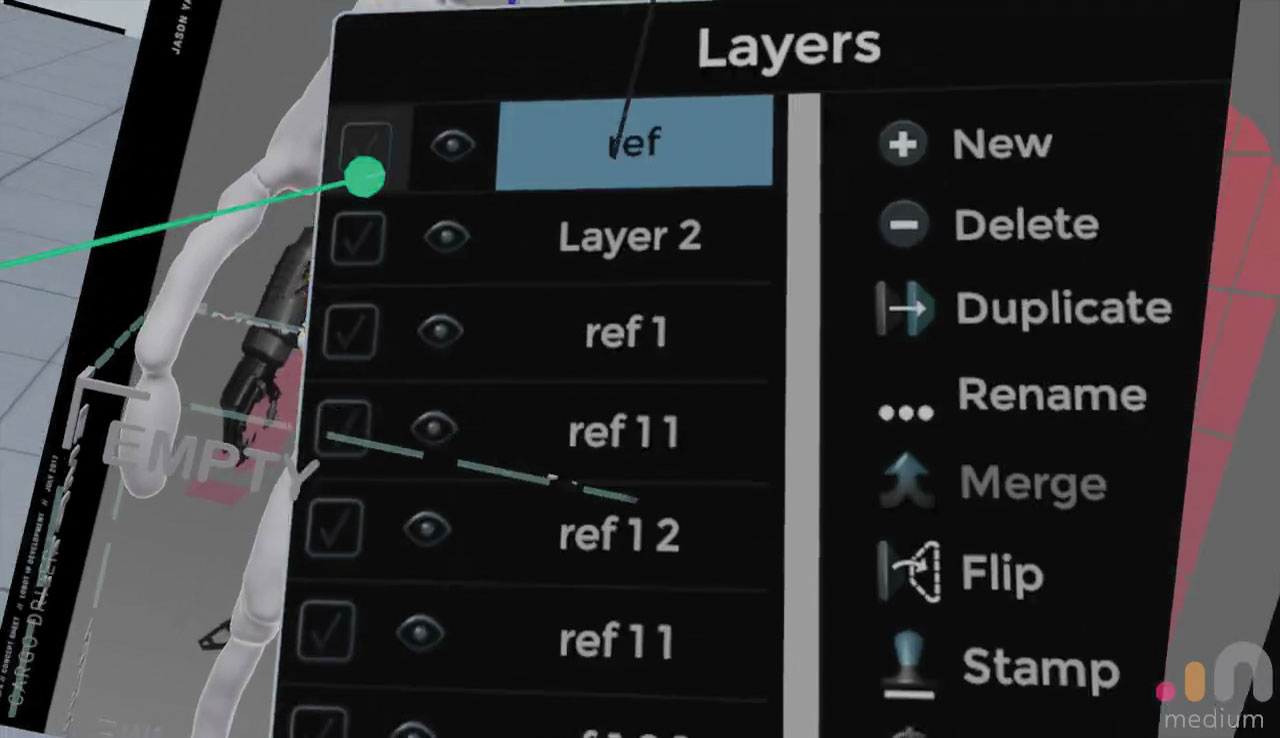

Pull back the Support hand thumbstick and make sure you have the Layers panel selected, the first button on the row of icons at the bottom. From here you can rename, delete and merge your layers.

For example you can use the eye icon next to the layer to hide individual layers as you work. If you point your Tool hand at a part and hit the trigger, you will automatically select the relevant layer, indicated by the yellow highlight. To cut a particular layer, re-select the main layer and continue cutting the model into individual parts.

08. Adjust environment settings

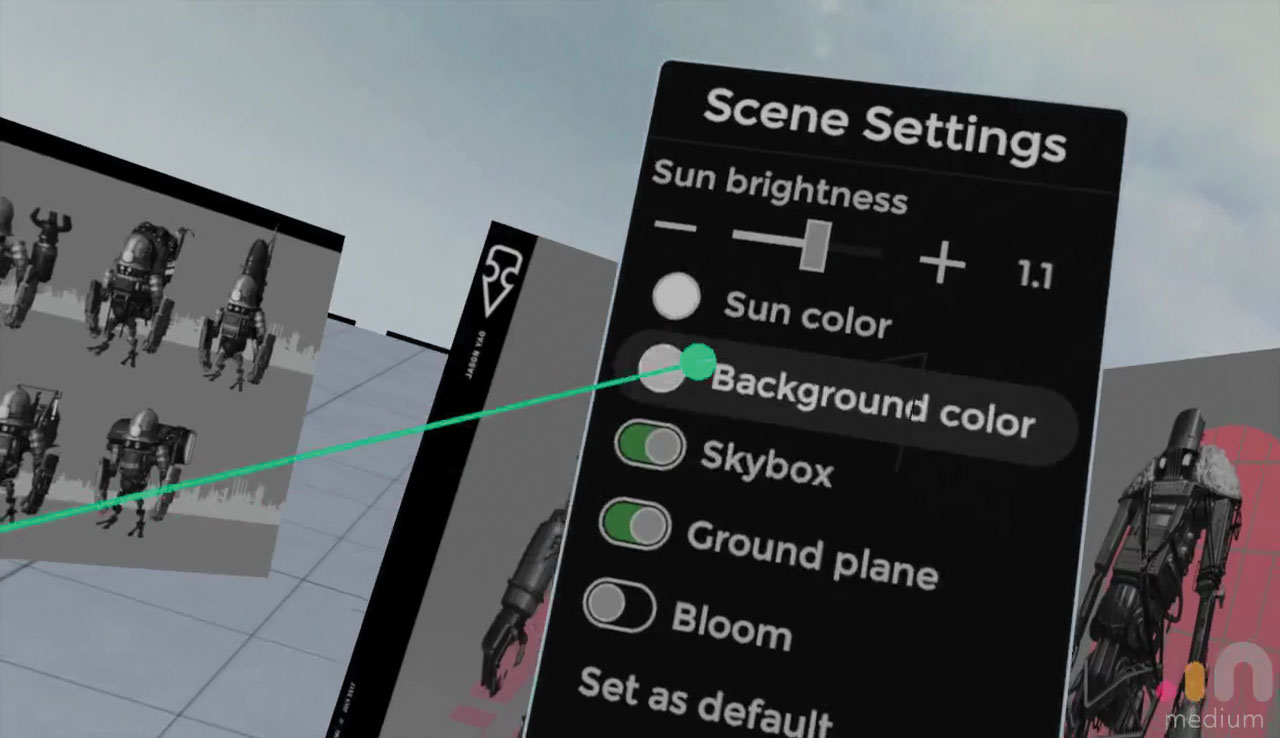

Scene settings dialog

With the scene settings you can configure the world to your liking

So far we have been using the default environment settings. You may want to configure your environment to suit your own style. To do this, pull back on the Support hand thumbstick and click the button that resembles the world.

From here you can change the sun colour, adjust the sun brightness, turn off the Skybox and change the background colour. You can also turn off the ground plane and just see the background colour you have chosen. Configure the world to suit your style and play around with the settings until you are happy.

09. Adjust material settings

Material settings dialog

Each model per layer can have its own material, enabling you to mix things up

Seeing as though we are making a robot, let's change the material to a metal shader. You can set a material for each model per layer so you will have to choose each layer and adjust it to suit.

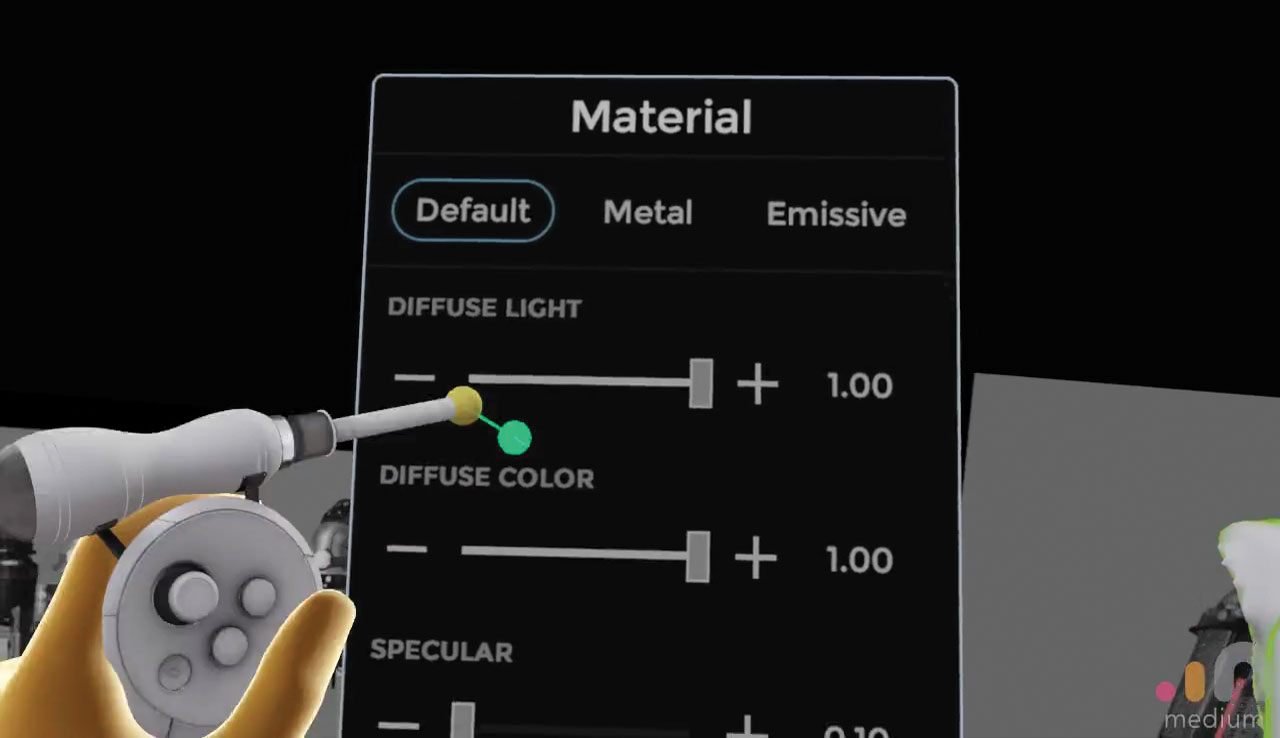

To do this make sure you are on the Layer menu again, then select the part you wish to change the material of. With the layer selected, press the green settings button on your Tool hand. On this menu, change the material by clicking Metal at the top middle. Now you can change the roughness, diffuse settings and the occlusion of the material.

10. Pick a colour

Colour wheel with VR hands and tool picking a colour

Use the colour palette to choose colours, or just grab one you've already used with the colour picker

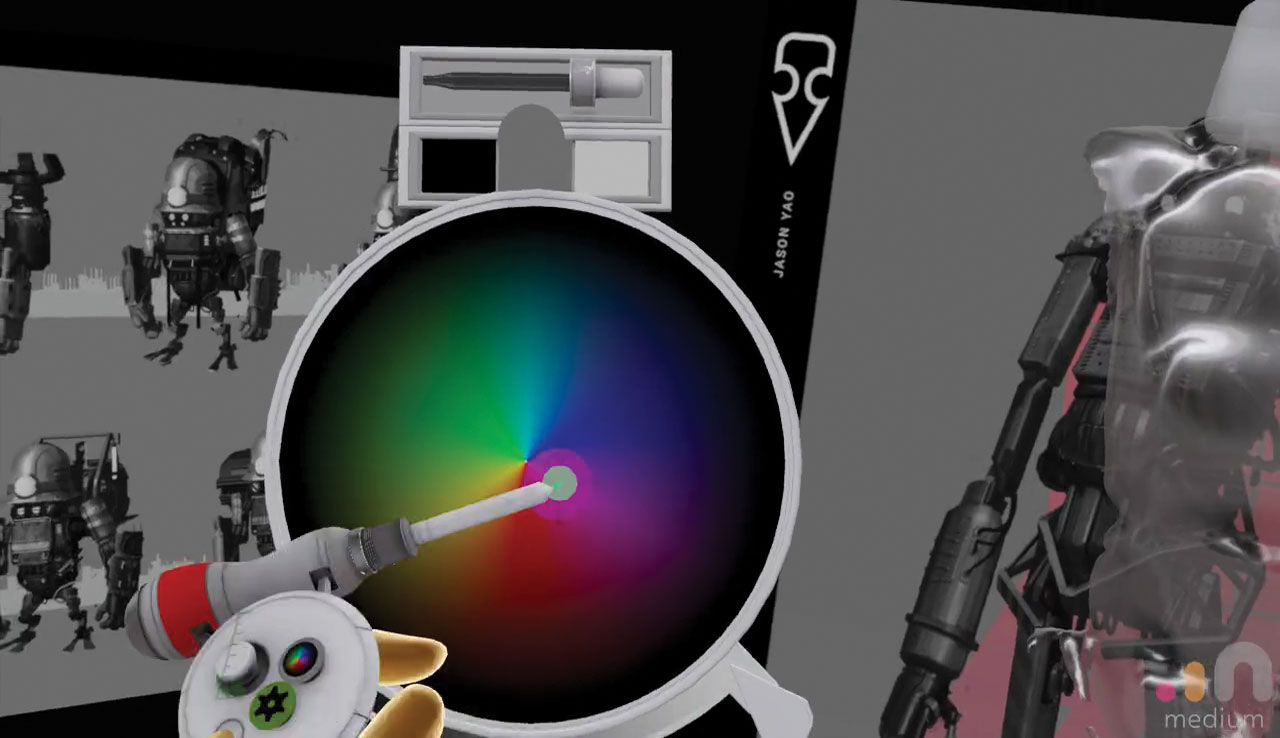

As we are about to start working on each layer at a more accurate level, we might want to change the colour as we go along. Make sure you have the Clay tool activated and click the colour palette button on the Tool hand. Use the picker from the top to select an existing colour from your sculpt, or select black or white. Any clay you add from now will be the colour you have selected.

11. Increase layer resolution

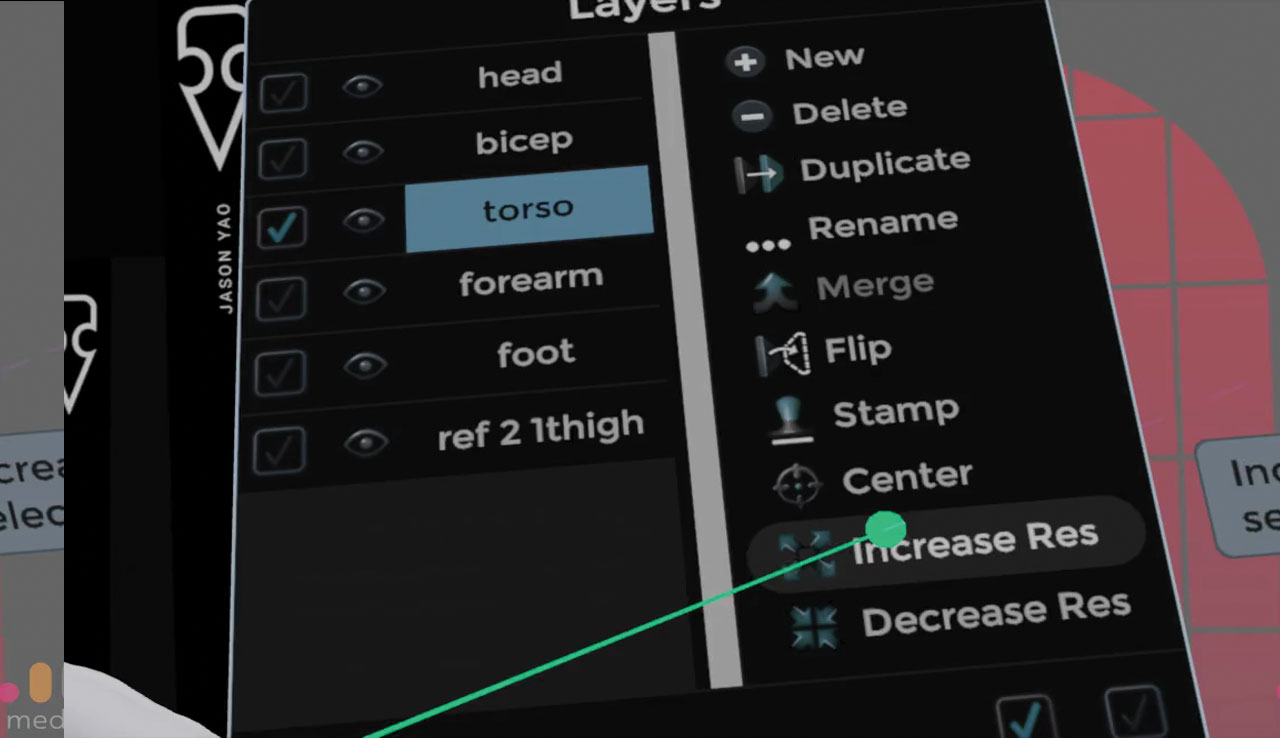

Layers dialog with Increase Res option highlighted

Make your sculpt less blocky by increasing the resolution

For some areas of the model that carry a lot of detail, you may notice that when adding clay, the resulting brush stroke is blocky and jagged. To solve this, it is worth increasing the resolution of the layer. Go to the Layer menu. On the right-hand side, you can find the Increase Res option to increase the resolution of the selected layer.

Every time this is done, the layer bounding box gets smaller, increasing the density of the voxel grid. Doing this in a physically large layer could result in it being cropped to fit inside the bounding box.

12. Apply clay in strokes

VR view of continuous brush stroke

Create a continuous brush stroke by holding down the Tool hand trigger

If you hold down the Tool hand trigger with the Clay tool selected and move your hand, this will create a continuous brush stroke. This can be changed by pressing the green gear icon on the Tool hand and selecting a single stamp at the top right of the panel. You can also enable line mode, which will lock the brush stroke along a line that protrudes from the Tool hand.

13. Define the shape of the torso

Robot torso

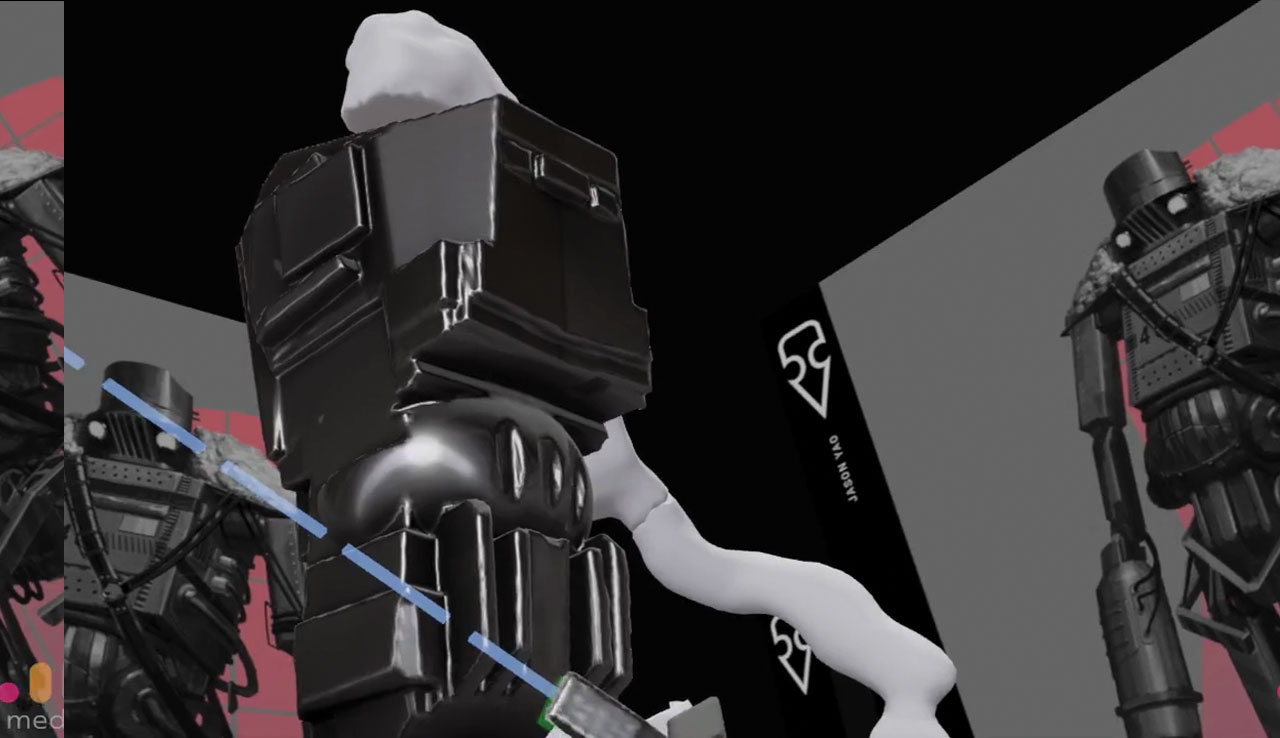

Use sphere and cube brushes to create the chest and abdomen

To begin creating the detailed parts of the robot we will make a start with the torso. Looking at the reference start building up the shape using the library of stamps at your disposal.

Make sure mirror is activated as shown earlier. Use a combination of the sphere and cube brushes to create the form of the chest and abdomen. To subtract parts of the model double-click the green gear button and the colour of the shape at the end of the tool will turn red. This will now remove clay from the sculpt and can be used to create shaped recesses in the sculpt surface.

14. Use the line mode to add bars

Tool adds bars

Lay down protective bars in line mode

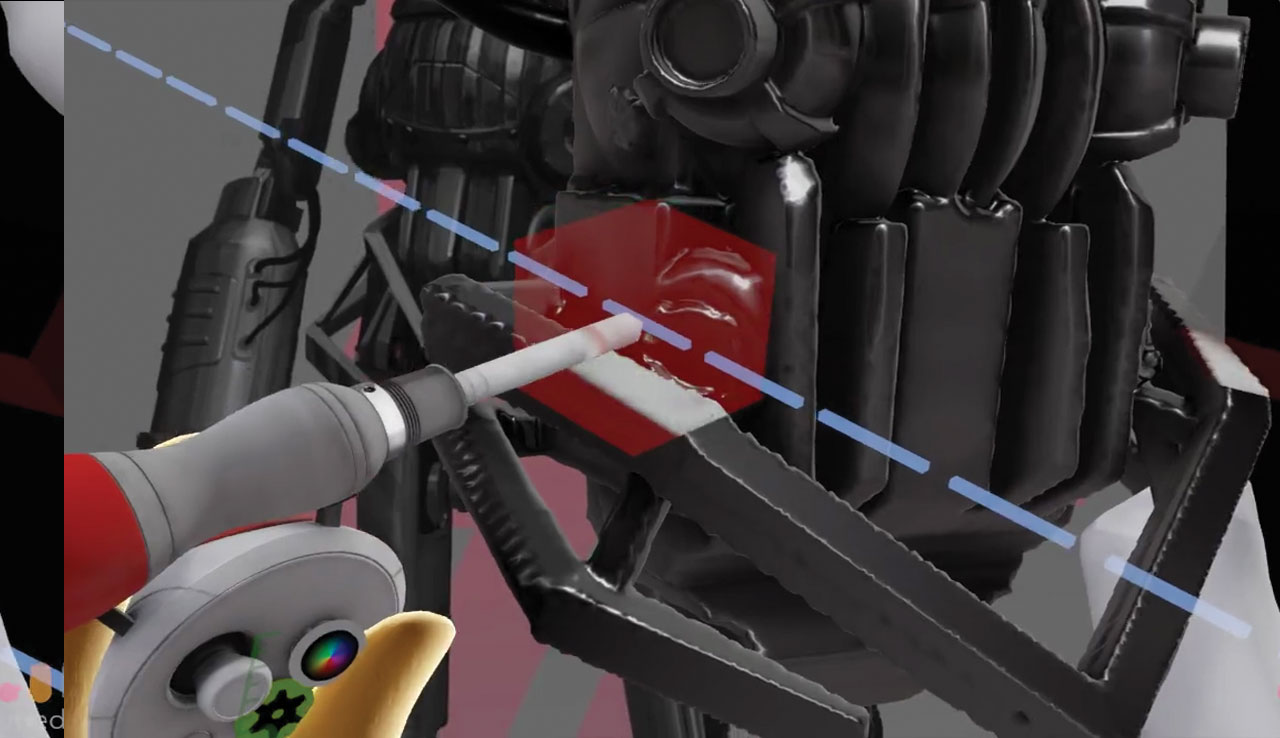

At the bottom of the torso we want to add some protective bars. Use the cube stamp for a hard edge and go into tool settings and select the line mode. Lay down the bars and make sure they intersect where needed. Edges can be neatened by using the subtract clay mode in conjunction with the line tool to remove clay from the sculpt and to add a chamfer to the edges of that layer.

15. Utilise stamps

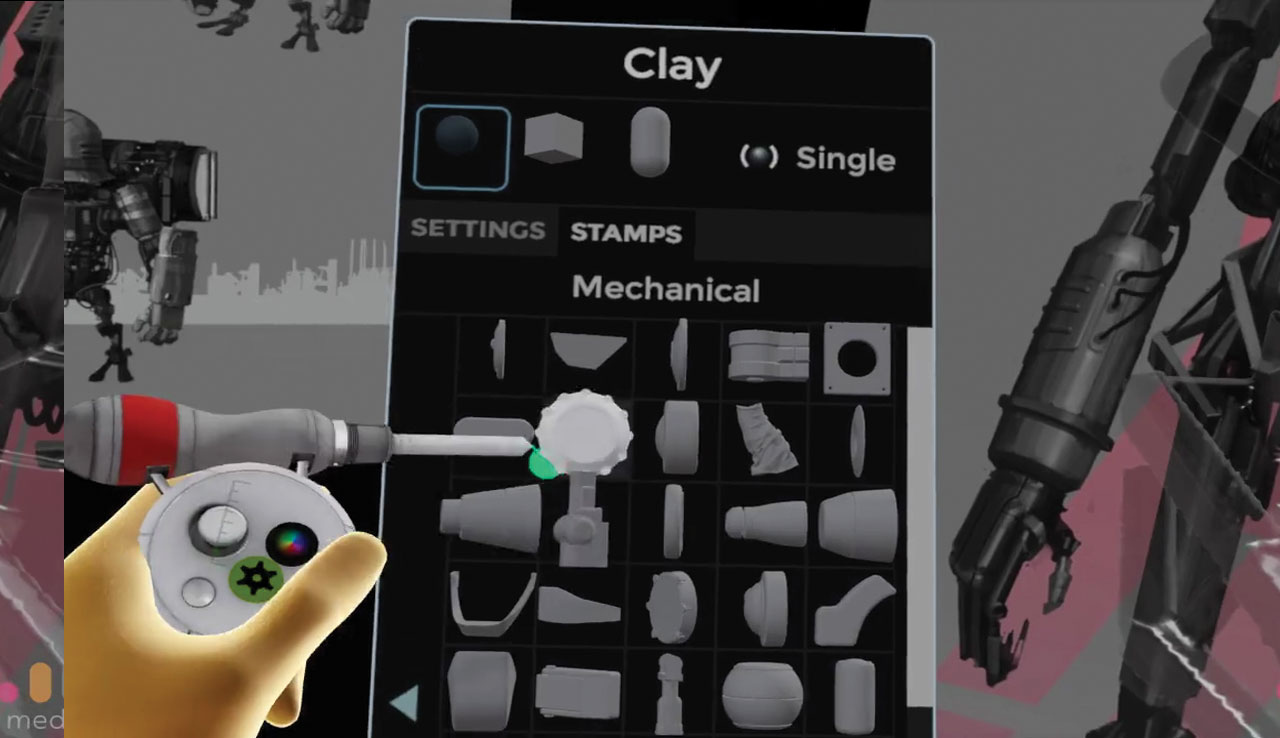

Clay stamps menu shows different shapes

Try combining stamps to create interesting effects

Press the green gear button to bring up the Tool Options menu. There are a large range of stamps available, arranged by category. For this project we will mainly be using the Mechanical stamps. When using a stamp, the shape added will reflect the resolution of the layer you stamp it on. Try a range of stamps in add and subtract modes to create interesting shapes.

Next page: Finish off your VR character
