Nvidia RTX A1000 review: a small card can make a big difference

The Nvidia RTX A1000 - no GeForce branding here, as it’s not a board aimed at gamers - is a tiny workstation graphics card based on the Ampere architecture. It’s roughly comparable to the GeForce RTX 3050, with the same number of CUDA cores, but it packs 8GB of VRAM against the 6GB commonly found in the gaming card.

This doesn’t put it very far up the GPU hierarchy; in fact, it’s barely better than the kind of integrated graphics solutions we’re seeing supplied with CPUs in 2026, but crucially, it is better, uses surprisingly little power, and is capable of driving more monitors than a single video output would ever be able to.

Key specifications

Design, build and display

• Compact card
• Four video outputs

The RTX A series is the heir to Nvidia's old Quadro range of workstation graphics processors. They’re small, low-power boards that aren’t designed in the same way as the gaming-focused GeForce cards: they’re more likely to be connected to multiple monitors, and won’t necessarily be used for lighting and texturing polygons. It’s a low-end card that uses an older graphics architecture, but that doesn't mean it doesn't have its uses.

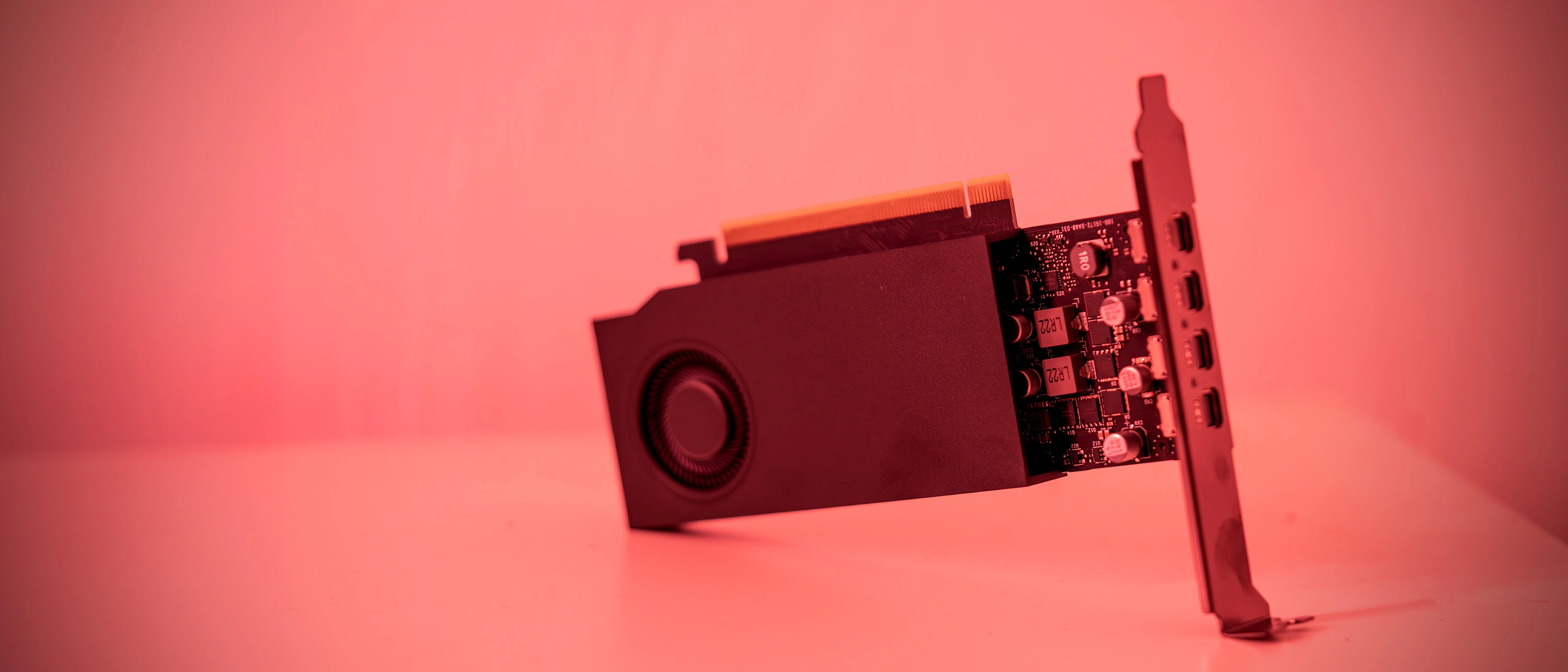

The first thing you’ll notice about the A1000 as you take it out of the box is the size. It’s so tiny that the single-slot backplate extends quite a long way beyond the point that the card stops, and even in an SFF PC case, it looks like there's not quite enough of it to actually function. This means that, if you have a mini PC with a PCIe slot like the Minisforum MS-01 or one of its descendants, you can pop the A1000 inside as an instant upgrade.

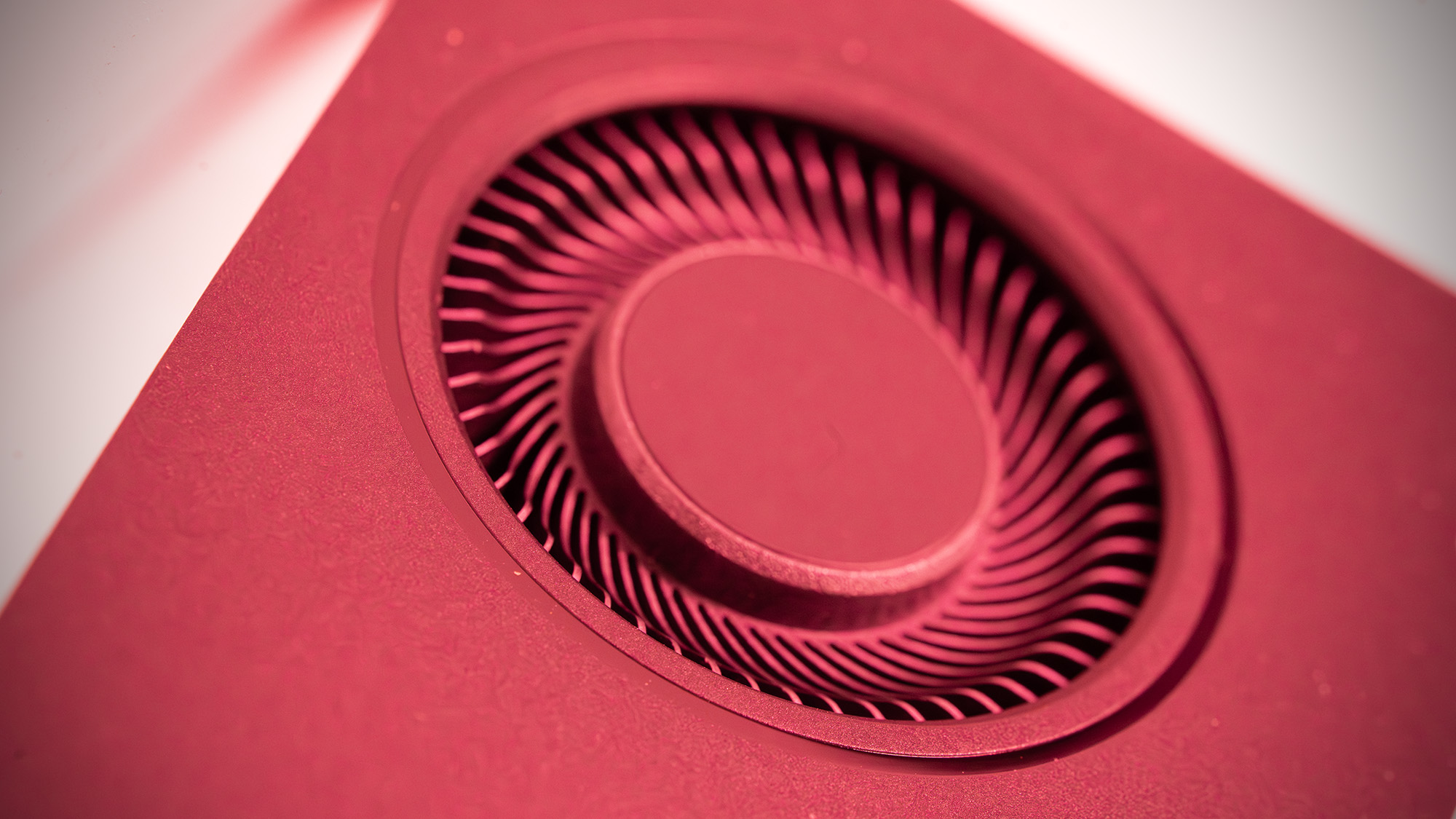

It’s a very easy card to install as it pulls all the power it needs through the PCIe slot without requiring a separate connection to the PC’s PSU, meaning you’ll need to do less fiddling about inside your computer case to get it working. With its single fan it’s also quiet, though it can get quite buzzy when being made to work hard.

Design score: 4/5

Features

• Enables Nvidia software features
• Two generations behind

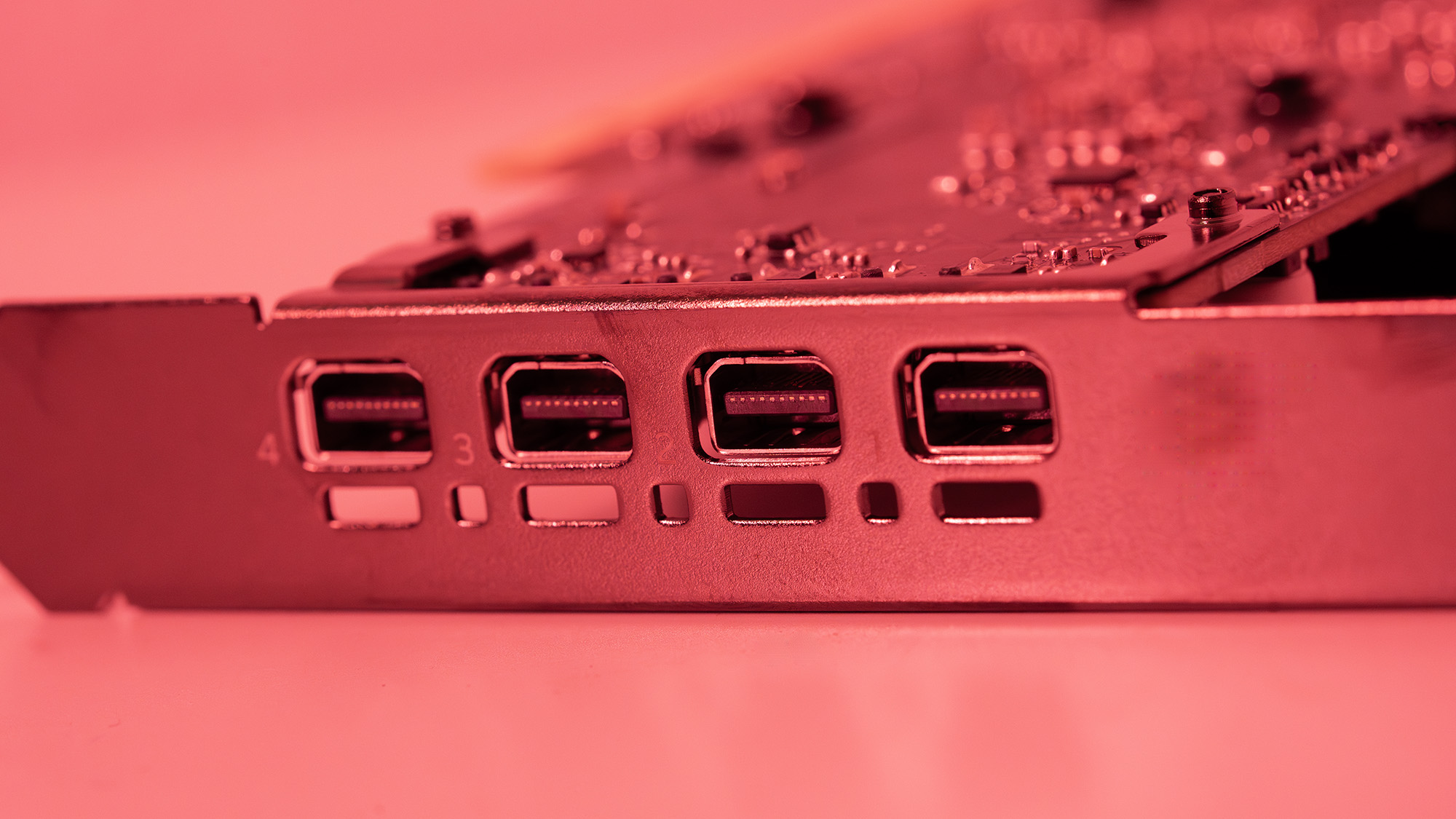

With four video outputs on the back, the ability to connect four monitors is a major advantage of the A1000 over integrated graphics solutions. Because of the small size of the card, all four are Mini-DisplayPort, and four adapters in the box convert these to full-size ports, so you don’t have to shell out on four new cables - though as they were used for older Thunderbolt implementations, you may have some already gathering dust in a box. Each output is capable of 4096x2160 at 120Hz, 5K at 60Hz or 8K at 30Hz.

A low-end card like this also allows you to install the Nvidia software on your PC, and that opens up a lot of software options outside of pure rendering power. The card can be used to replace backgrounds or remove audio noise in video calls, or do that slightly uncanny thing where it keeps your eyeballs pointed at the camera to make it look like you’re paying attention even though you’re really playing Galaga on your second screen. Dedicated GPUs handle this sort of thing better than integrated ones, and there's G-sync for compatible monitors too.

The ray-tracing cores on board will give the card a boost when rendering images with photorealistic lighting, perhaps for architectural visualisation or product design, but the Ampere chip used here is two generations behind the cutting edge, and will be outclassed by a newer card.

Feature score: 3/5

Performance

• Good for Photoshop acceleration
• Left behind elsewhere

The A1000 isn’t a spectacularly powerful card by any means. In tests, it manages less than half the performance of the RTX 5060, a gaming card that costs less and is two generations of hardware ahead. For such a small, low-power card, however, it pulls a third of the wattage of the 5060 - it does well enough to beat integrated graphics, and that might be enough, especially if your needs aren’t purely rendering-based.

So in the Geekbench 6 GPU test, the A1000 scores 57,148 against the CPU’s integrated graphics’ 6,067, that’s 9.4x the score, but an RTX 5060 scores around 126,986 in the same test, which doubles the A1000’s performance. It’s a similar story in the Cinebench 2026 rendering test, where the 5060 posts more than twice the score of the A1000, and in 3D Mark’s Steel Nomad DX12 gaming test, the difference is even greater: the 5060 produced 56fps, the A1000 9.7fps, and the integrated graphics 1.2fps. In Geekbench AI, it was five to ten times as potent as the AMD CPU’s integrated graphics, though we were using a model without a dedicated NPU.

There is one place the A1000 can beat the RTX 5060, other than being able to squeeze into tighter spaces, and that’s Photoshop. Unexpectedly, the little card was able to produce scores in the Pugetbench Photoshop benchmark that matched or exceeded (by as many as three points or 2.3%!) the newer, higher-power Blackwell chip. Things were back to normal in Premiere Pro, with the A1000 scoring half as well as the 5060 but still easily beating integrated graphics chips.

It would have been a solid performance in 2024 when this board was first launched, but with the 5000-series cards in circulation and often costing less, it’s starting to look like the only thing the A1000 has going for it is its size.

Performance score: 3/5

Price

At the time of writing, the A1000 can be had for around £400 in the UK. You can get an RTX 5060 Ti with 8GB of VRAM for only slightly more (£430) than you’d pay for the A1000 (£390), while the base 5060 8GB model costs just £300. These two GeForce cards might be better options unless you have a specific need for such a small, low-powered card. If you want to put it in a mini PC or a compact external dock, for example.

Value score: 2/5

Who is it for?

• Designers and image editors

If you’re doing CAD or arch-vis with a small PC, or want something to go in an external enclosure, then the A1000 may make sense. However, with cheaper options available that offer more rendering power, the niche this card fills is a small one.

Buy it if...

• You want a mini PC upgrade
• Or a low-wattage wonder
• You’re nostalgic for the Ampere generation

Don't buy it if...

• Something newer...
• ...or cheaper will do the same job
• You want to play games too
