Design a simple index with InDesign

An index can give any published title authority, as well as increased usability, yet some designers are still none the wiser about how best to create one. There are many different kinds of index, so I'll walk you through the basics, which will enable you to get started. I'll be using samples from a title that I've been working on recently, indexing just one section of the brochure.

All indexes are different, and some can contain many different levels. The one we're going to work through in this tutorial is for restaurants and has two levels: the first for the food type, and the second for the restaurant name.

Please note that this tutorial is for InDesign CS4 or later.

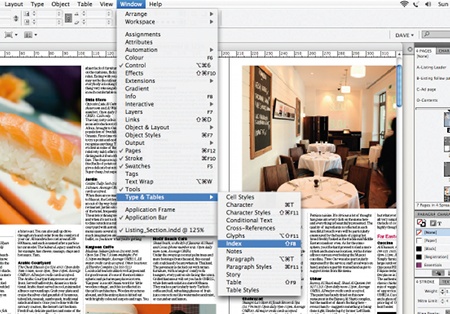

type tables index

create index

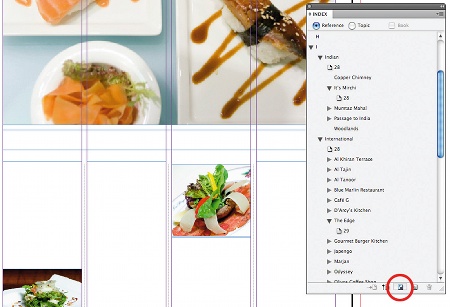

01 To begin creating an index for your project, open your InDesign document, go to Window>Type & Tables>Index, and click Select Reference.

top level topics type tool

top level topics

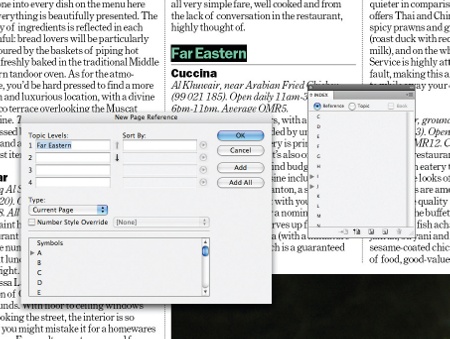

02 Let's start by adding our top-level topics (here, food type) to the index. Using the Type tool, highlight the word or words you'd like to add as an entry and select 'Create a new index entry'. When the dialog box appears, click OK and continue adding all other top-level topics as required.

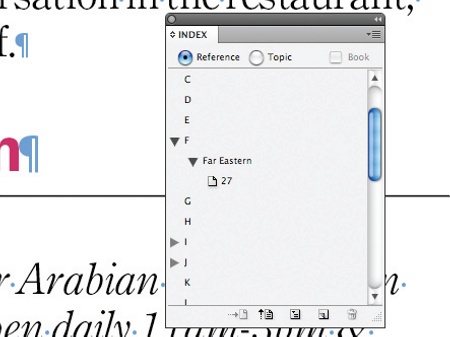

index marker

index marker

03 Once added, each entry will have an index marker applied at the start. You can see these markers in the document by showing hidden characters (Ctrl/Cmd+Alt/Opt+I).

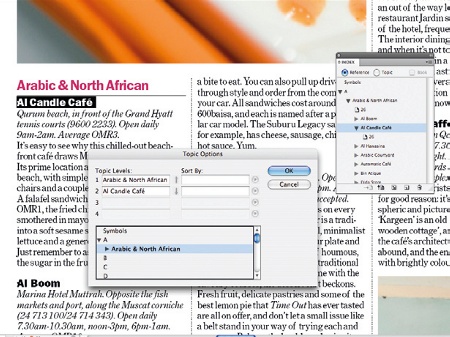

reference each topic

reference each topic

04 Next, we'll add the references to each topic (in this case, our restaurant names). Follow Steps 2 and 3 as before, but in the pop-up dialog box that appears click the Down arrow to move them down one level. Find the top-level topic required (Arabic & North African, here) in the list below and double click to make it level one.

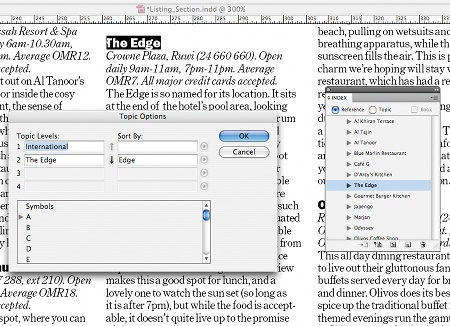

sort by panel

sort by panel

05 Should any entries contain unusual characters, numbers or words, these can be re-sorted in the Sort By panel by retyping or omitting the problem word. This will help to ensure accurate alphabetisation throughout.

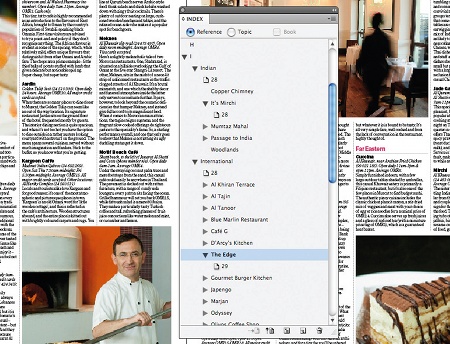

check index

double check index

06 Continue this process until all of the entries have been added to the index. To double-check your index, use the drop-down menus to review the entries and page references.

prepare page generate index

Prepare page

07 Before generating your index, it's wise to prepare a page and give lots of thought as to how you'd like it to appear. InDesign will format the copy for you but it will be very basic, so it's worth creating some style sheets first using dummy text. Once this is done, click Generate Index.

08 There are lots of options in the Generate Index dialog box, but we're only interested in the basics. We're creating a 'nested' index, which will give us the hierarchy we want, so make sure this option is selected.

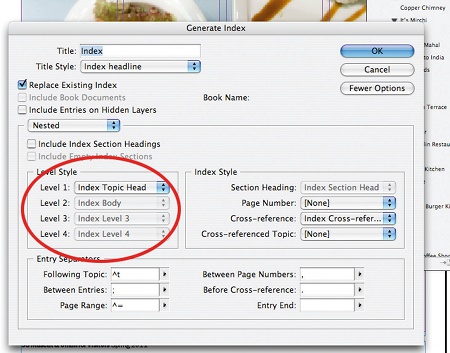

nested index

nested index

09 Select any style sheets you've already created for the Title, Level 1, Level 2 and Page Number options if desired. Click OK.

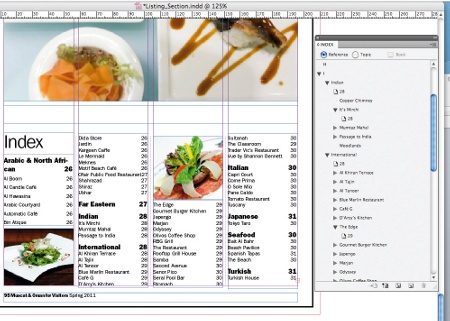

loaded curser

loaded curser

10 After clicking OK, you'll see a loaded cursor. Apply the generated index to your layout. Don't worry if you find mistakes because these can easily be corrected in the Index palette, with a new index regenerated over the top of the old one.

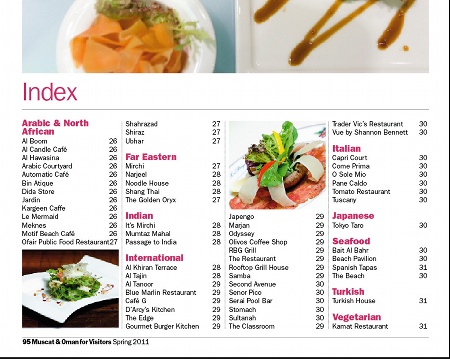

colour, typesetting

colour, typesetting

11 A splash of colour, a little typesetting and some striking images will help lift the page, making it as visually appealing as the rest of your publication.

David Donaghy
London-based David is the former art director of Time Out (Middle East portfolio) and he currently works as a freelance art director on various publishing projects both locally and internationally.
